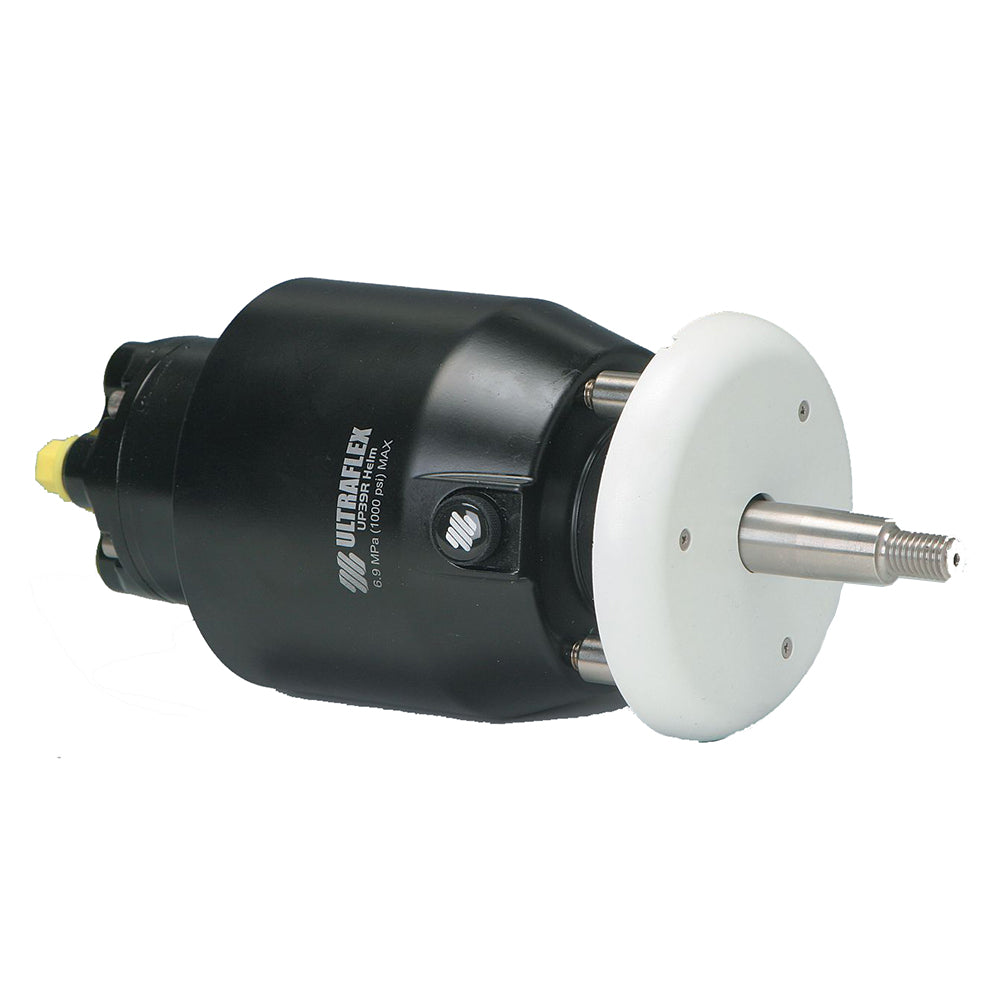

![Uflex UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft [UP28R] - BuoyMart.com Steering Systems Uflex USA](http://buoymart.com/cdn/shop/files/75560XL.jpg?v=1741410454&width=1000)
By Uflex USA
Uflex UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft [UP28R]
Regular price
$754.95 USD
Regular price
$980.73 USD
Sale price
$754.95 USD
Unit price
per
Shipping calculated at checkout.
Availability:
Low stock: 3 left
SKU:
75560
Couldn't load pickup availability

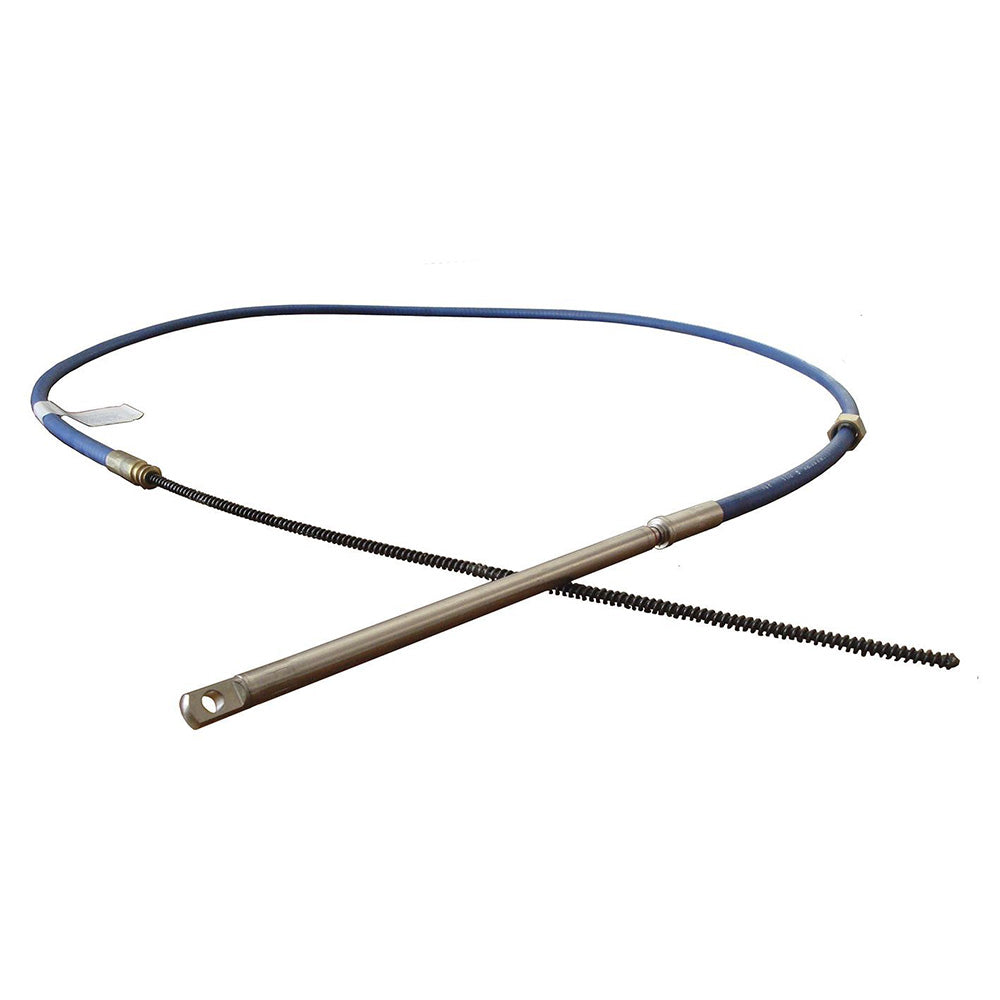

![Uflex M90 Mach Rotary Steering Cable - 11 [M90X11] - BuoyMart.com Steering Systems Uflex USA](http://buoymart.com/cdn/shop/files/92828XL.jpg?v=1741422783&width=1420)
![Uflex Single Paddle Trim System [PTS-1] - BuoyMart.com Switches & Accessories Uflex USA](http://buoymart.com/cdn/shop/files/66958XL.jpg?v=1741404816&width=1420)
![Uflex UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft [UP28R] - BuoyMart.com Steering Systems Uflex USA](http://buoymart.com/cdn/shop/files/75560XL.jpg?v=1741410454&width=150)
Regular price
$754.95 USD
Regular price
$980.73 USD
Sale price
$754.95 USD
UP28R Rear Mount Helm 1.7 cu. 3/4" Tapered Stainless Steel Shaft
Features:
- Available in four different displacement sizes
- Compact design
- Ball bearing piston race
- Built-in lock valve for positive rudder lock
- Integral relief valve for over-pressure protection
- 3/4” tapered stainless steel shaft
- Easily accessible lock valve and shaft seal for replacement
- Cast iron cylinder rotor for greater durability and longer life
- 1/4" NPT fitting for 3/8" tube
- Includes 90° adjustable fittings for 3/8” tube and white bezel
- UP45R pump is ideal for double cylinder outboard applications
- UP45 pump is available also for inboard application
- X68 (optional) - 40894Z Chrome bezel
- KITF (optional) - 39664Y Remote fill adapter
Specifications:
- Mounting: Retro-cruscotto
- Displacement/Revolution: 28 cc-1.7 cu in
- # of Pistons: 5
- Relief Valve Setting: 70 Bar - 1000 PSI
- Maximum Wheel Diameter: 710mm - 28"
- Weight: 5kg - 11 lbs.
