By Blue Sea Systems
Blue Sea 7611 DC BatteryLink Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging [7611]
Regular price
$99.95 USD
Regular price
$163.99 USD
Sale price
$99.95 USD
Unit price
per
Shipping calculated at checkout.
Availability:
Low stock: 5 left
SKU:
47526
Couldn't load pickup availability
![T-H Marine 42" Battery Strap w/Stainless Steel Buckle [BS-1-42SS-DP] - BuoyMart.com Battery Management T-H Marine Supplies](http://buoymart.com/cdn/shop/files/81940XL.jpg?v=1741415528&width=1420)
![Blue Sea 6008 M-Series Battery Switch 3 Position - Red [6008] - BuoyMart.com Battery Management Blue Sea Systems](http://buoymart.com/cdn/shop/files/75116XL.jpg?v=1741410075&width=1420)
![Blue Sea 7611 DC BatteryLink Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging [7611] - BuoyMart.com Battery Management Blue Sea Systems](http://buoymart.com/cdn/shop/files/47526XL.jpg?v=1741394747&width=150)
Regular price
$99.95 USD
Regular price
$163.99 USD
Sale price
$99.95 USD

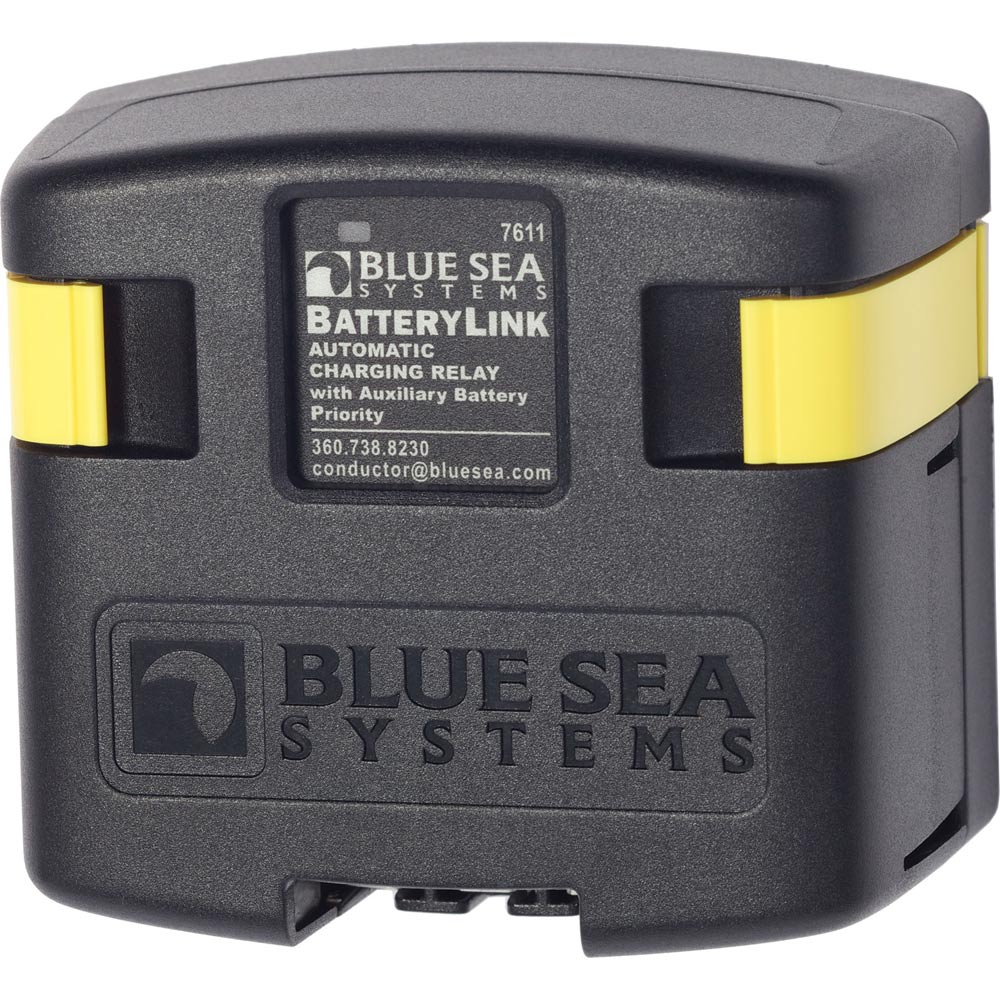

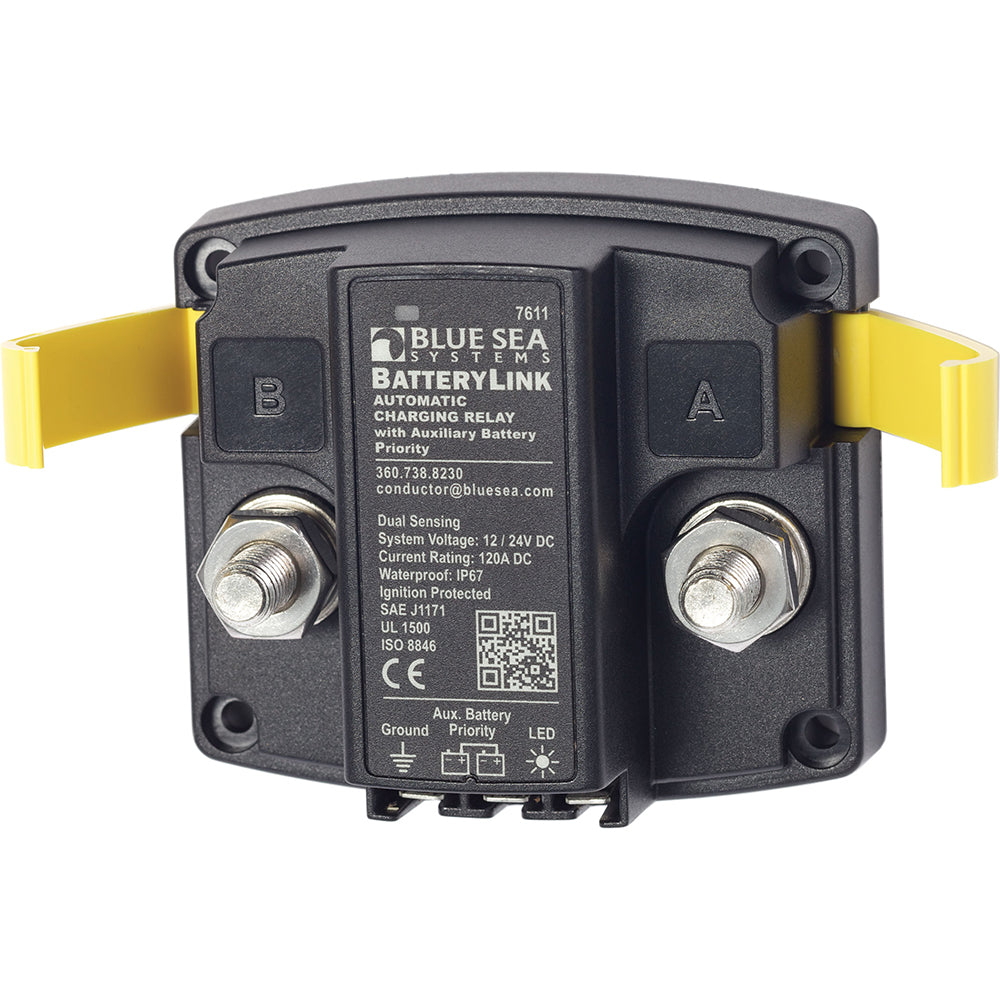

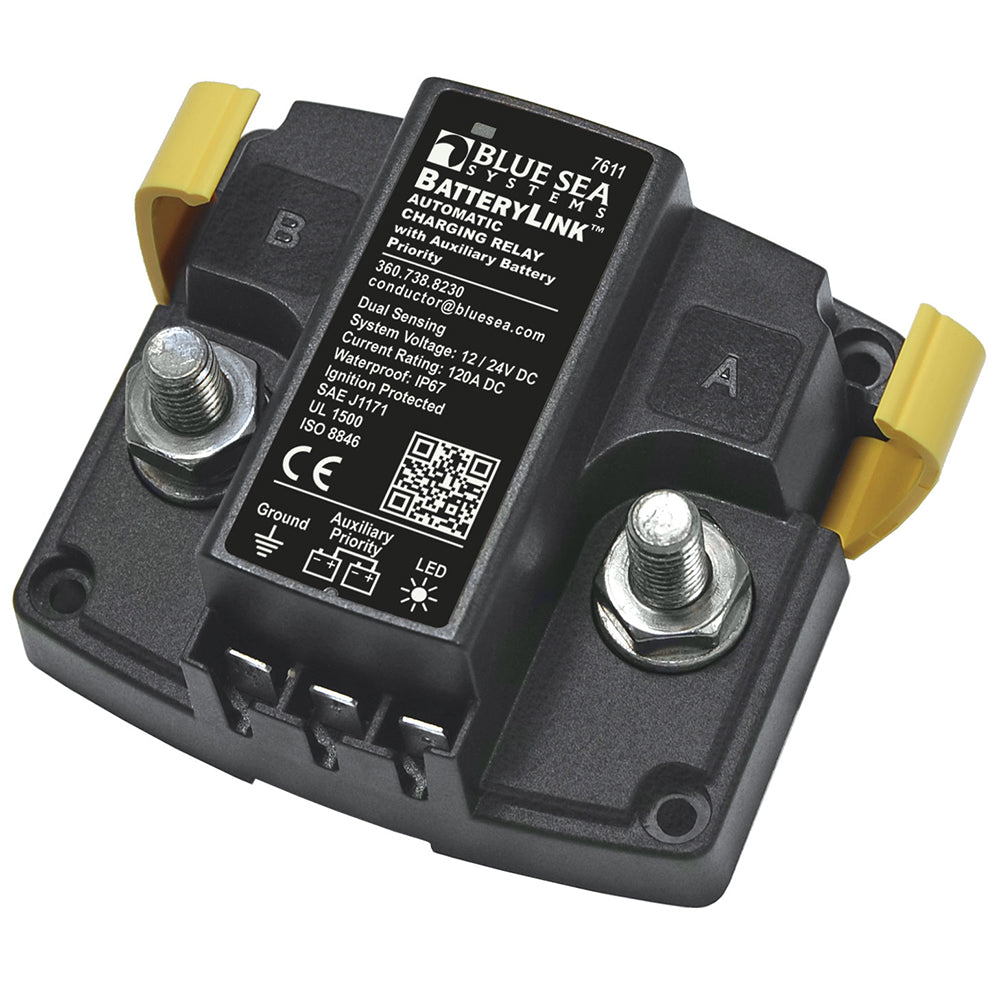

7611 DC BatteryLink™ Automatic Charging Relay - 120 Amp w/Auxiliary Battery Charging
Features:
- 120 Amp continuous rating
- 12/24V DC auto ranging voltage input
- Senses charging on two battery banks
- Side and bottom knockouts for cable connections
- Clip-on cover insulates terminal connections
- 7/8" (22 mm) stud length to accept multiple cable terminals
- Integrated LED indicates ACR status
- 1/4" x .032" male quick connect terminals for ground and optional features
Specifications:
- Intermittent Rating: 5 min.: 210 Amps
- Continuous Rating: 120 Amps
- Nominal Voltage: 12/24 Volts DC
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Specifications:
- Continuous Amperage: 120a
- Box Dimensions: 4"H x 7"W x 9"L WT: 1.25 lbs
- UPC: 632085076115
Owner's Manual (pdf)
