By Blue Sea Systems
Blue Sea 7615 ATD Automatic Timer Disconnect [7615]
Regular price
$124.95 USD
Regular price
$204.99 USD
Sale price
$124.95 USD
Unit price
per
Shipping calculated at checkout.
Availability:
Low stock: 6 left
SKU:
64363
Couldn't load pickup availability
![Mastervolt Charge Mate Pro 40 - Electronics Charge Relay [83304002] - BuoyMart.com Battery Chargers Mastervolt](http://buoymart.com/cdn/shop/files/68306XL.jpg?v=1741405661&width=1420)
![BEP Heavy-Duty Battery Switch - 600A Continuous [720] - BuoyMart.com Battery Management BEP Marine](http://buoymart.com/cdn/shop/files/60034XL.jpg?v=1741401080&width=1420)
![Blue Sea 7615 ATD Automatic Timer Disconnect [7615] - BuoyMart.com Battery Management Blue Sea Systems](http://buoymart.com/cdn/shop/files/64363XL.jpg?v=1741403404&width=150)
Regular price
$124.95 USD
Regular price
$204.99 USD
Sale price
$124.95 USD

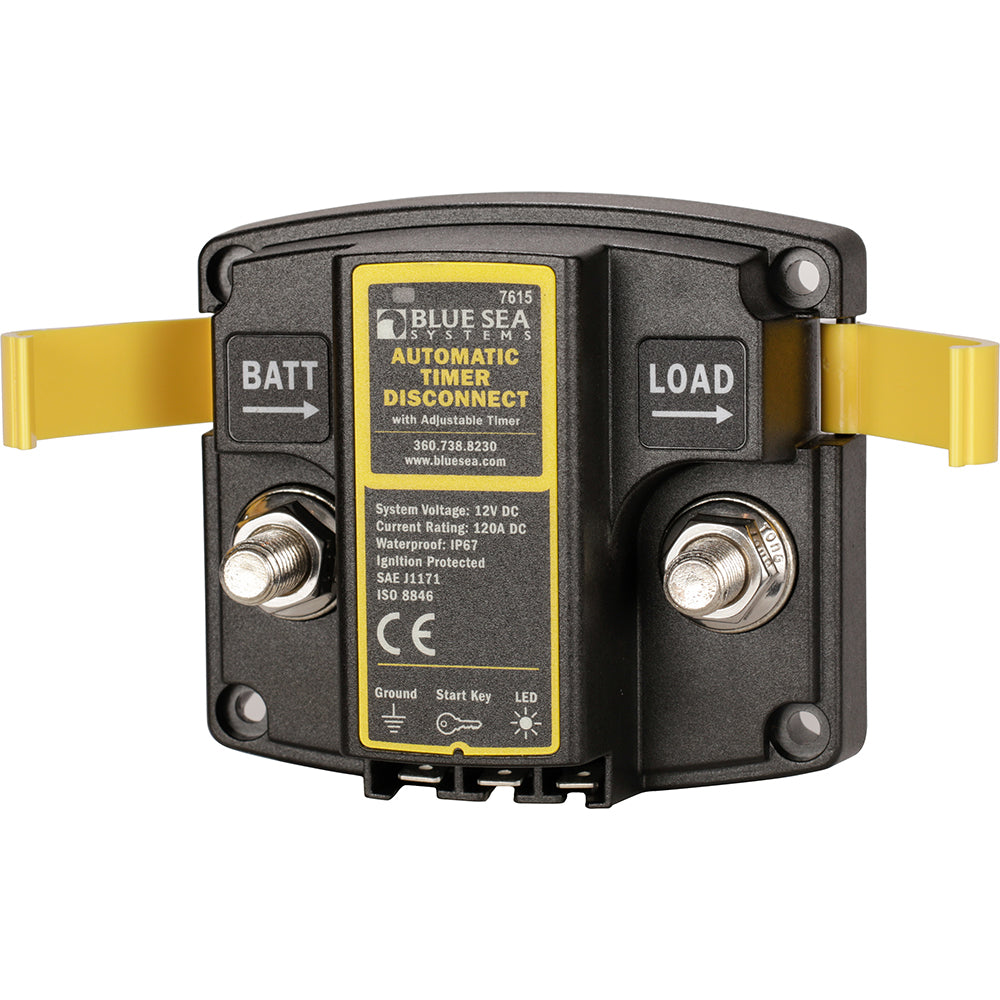

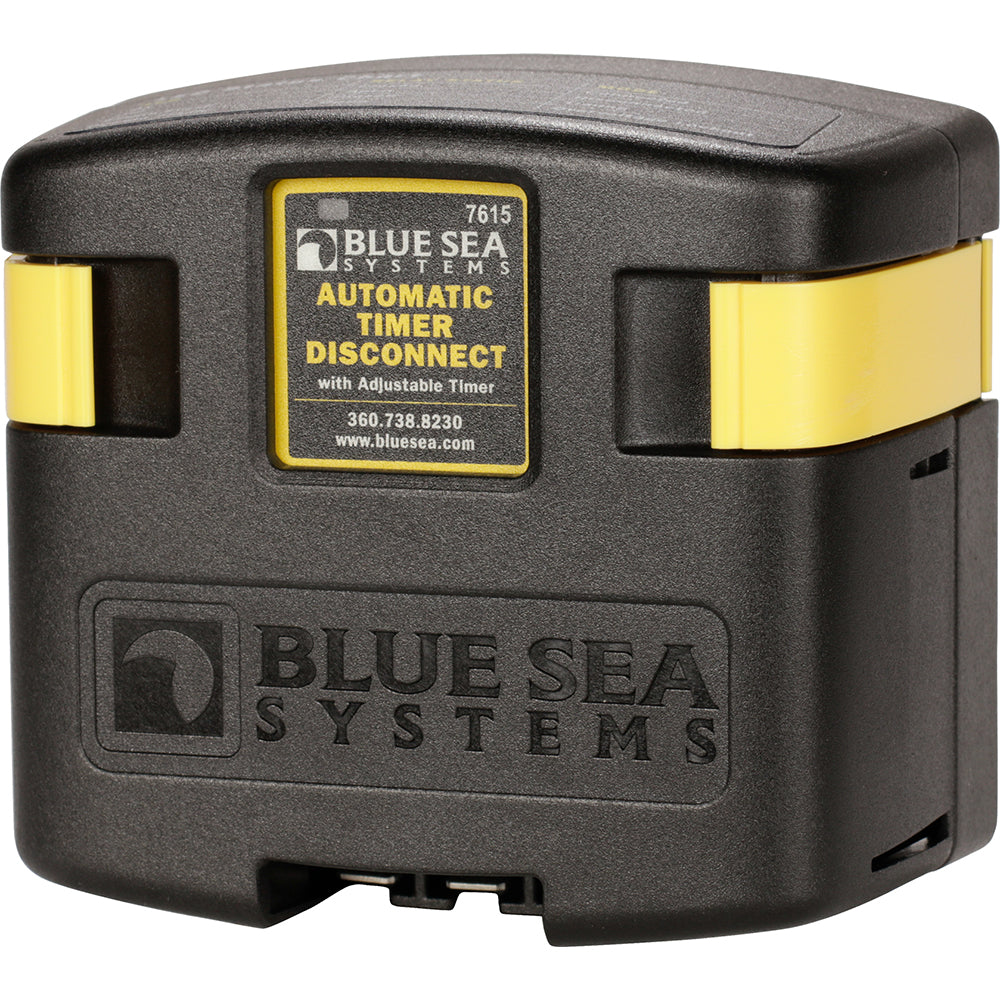

ATD Automatic Timer Disconnect
Adjustable time or voltage based battery disconnect automatically shuts off devices to preserve battery power
- 12V signal triggers relay to connect battery power to devices. When signal is removed the timer is activated and will disconnect devices after a preset time
- Disconnect can be triggered based on time, low voltage, or removal of 12V signal
- Low voltage will disconnect if time hasn_t been reached to preserve battery power
- Time and voltage options can be turned off to allow 12V signal based disconnect
- Clip-on cover insulates terminal connections
- One-piece stainless flange nuts ensure safe and secure connections
- Integrated LED indicates status
Specifications:
- Nominal Voltage:12V DC
- Amperage Operating Current: 175mA(Combine / 15mA(Open)
- Continuous Rating:120A
- Intermittent Duty: 210
- Terminal Stud Size: 3/8"-16 (M10)
- Time Range: 15min-4hrs
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Owner's Manual (pdf)
