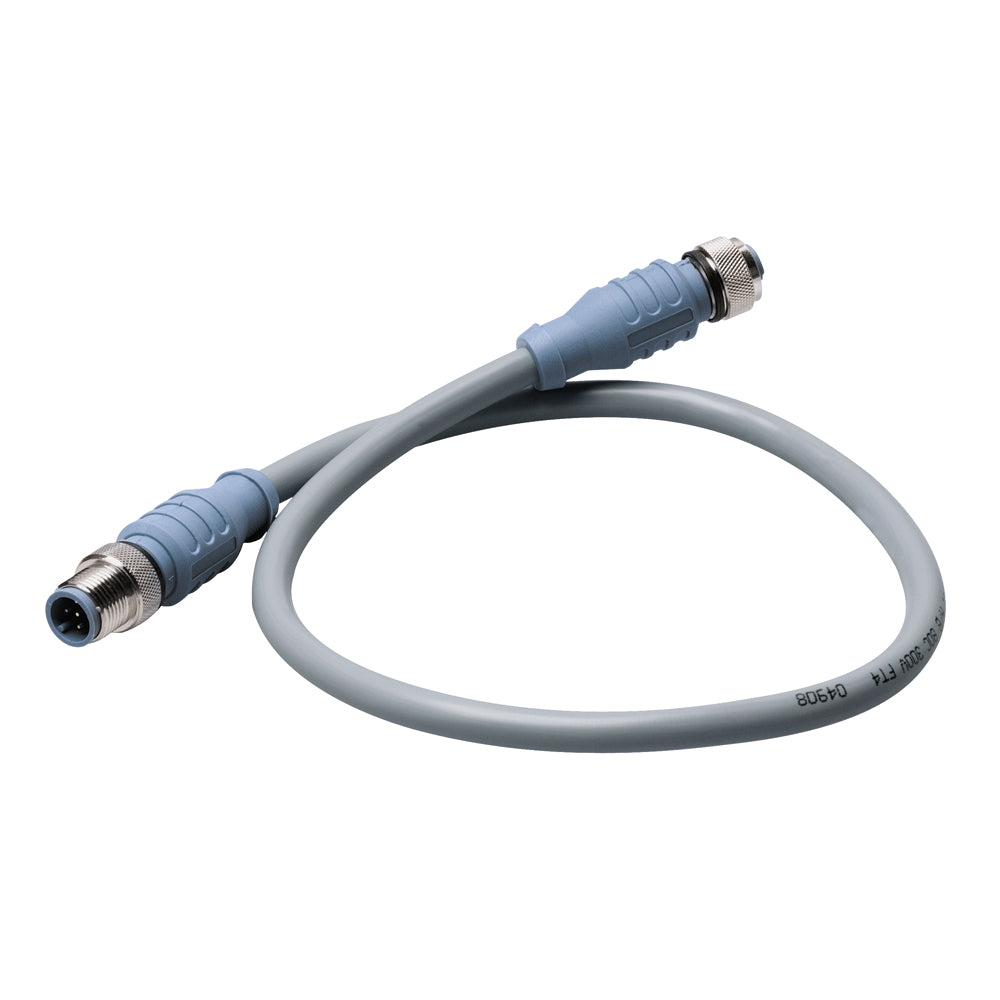

Maretron Micro Double-Ended Cordset 5 Meter [CM-CG1-CF-05.0]

$52.95 USD
$55.00 USD $52.95 USD
-$2.05 USD
Shipping calculated at checkout.
Availability: 22 in stock
SKU: 33359

Scure payment with us

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa
MaretronMaretron Mid Double-Ended Cordset - 3 Meter - Blue [DM-DB1-DF-03.0]
Maretron Mid Double-Ended Cordset - 3 Meter - Blue [DM-DB1-DF-03.0] - BuoyMart.com  NMEA Cables & Sensors Maretron
Maretron Micro Double-Ended Cordset - 2 Meter [CM-CG1-CF-02.0] - BuoyMart.com  NMEA Cables & Sensors Maretron
MaretronMaretron Micro Double-Ended Cordset - 2 Meter [CM-CG1-CF-02.0]
Maretron Micro Double-Ended Cordset 5 Meter [CM-CG1-CF-05.0] - BuoyMart.com  NMEA Cables & Sensors Maretron
$52.95 USD
$55.00 USD $52.95 USD

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59?Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625, AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C, AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

    Specifications:

    • Connection Gender: Male-Female
    • Data Interface: NMEA 2000
    • Cable Length (Meters): 5m
    • NMEA 2000 Connectors: Backbone/Drop Cables
    • Box Dimensions: 1"H x 8"W x 8"L WT: 0.74 lbs
    • UPC: 873804001555
