  5. Maretron Micro Double-Ended Cordset - 6 Meter [CM-CG1-CF-06.0]
By Maretron

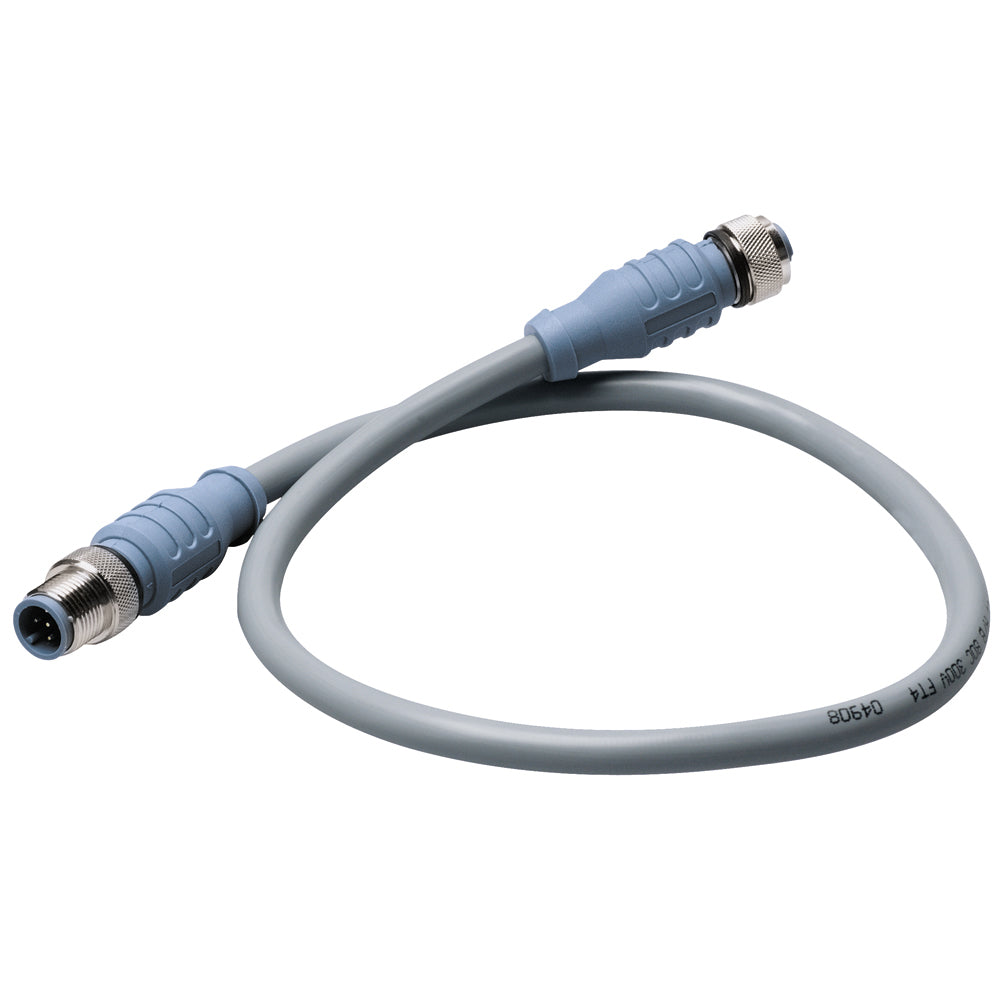

Maretron Micro Double-Ended Cordset - 6 Meter [CM-CG1-CF-06.0]

$57.95 USD
$60.00 USD $57.95 USD
-$2.05 USD
Shipping calculated at checkout.
Availability: 12 in stock
SKU: 31800

Scure payment with us

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Venmo
  • Visa

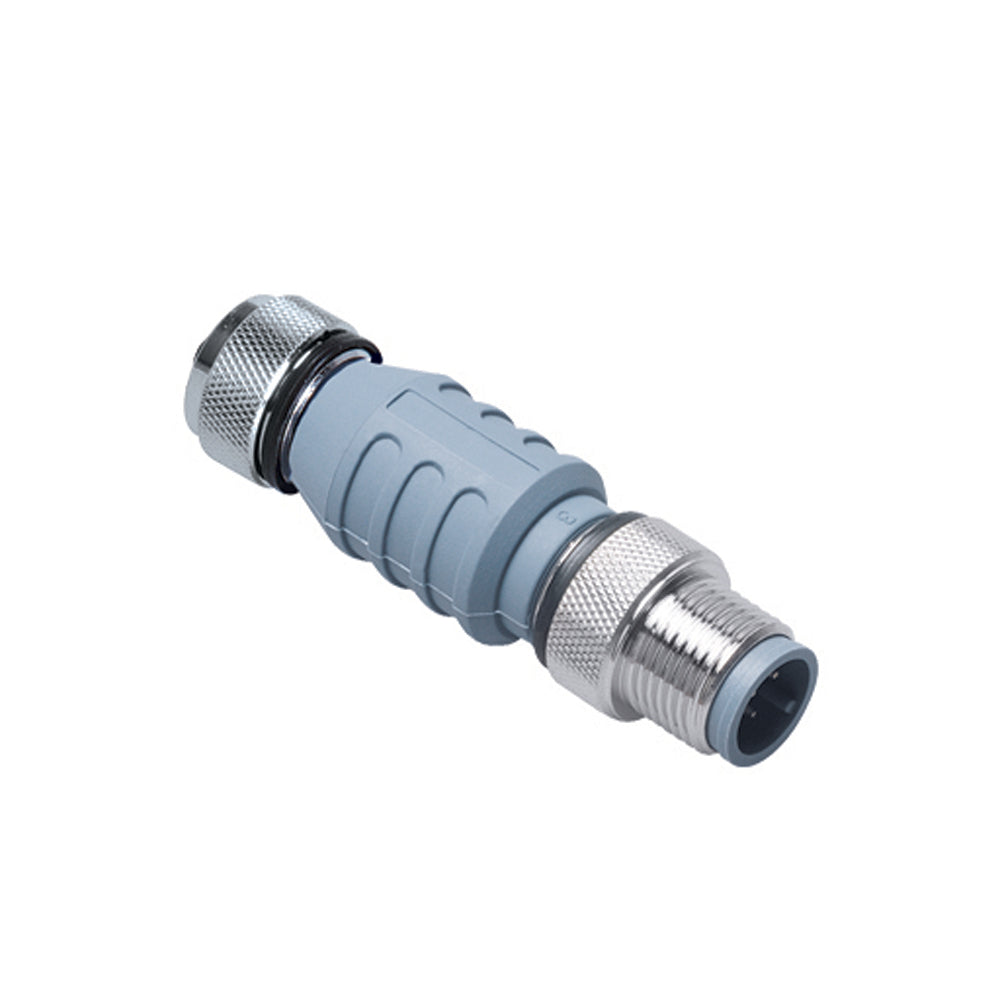

MaretronMaretron Micro Inline Termination Resistor [IT-CM-CF]
Maretron Micro Inline Termination Resistor [IT-CM-CF] - BuoyMart.com  NMEA Cables & Sensors Maretron
Maretron Micro Double-Ended Cordset - 6 Meter [CM-CG1-CF-06.0] - BuoyMart.com  NMEA Cables & Sensors Maretron
$57.95 USD
$60.00 USD $57.95 USD

Mechanical

  • Contact Carrier Mat/Color: Thermoplastic PUR/Blue-Gray
  • Molded Body Mat/Color: Thermoplastic PUR/Blue-Gray
  • Contact Mat/Plating: Brass/Gold
  • Coupling Nut Mat/Plating: Brass/Nickel
  • Connector Outside Diameter: 0.59"
    Electrical
  • Current Rating: 4.0 Amps
  • Voltage Rating: 250 V
    Cable
  • Outer Jacket Mat/Color: PVC/Gray
  • Conductor Insulation Material: HDPE (data pair), SRPVC (power pair)
  • Number of Conductors: 4X22 AWG, 22 AWG Drain Wire
  • Shielding (3-Levels): FOIL (Overall), FOIL (Power Pair), FOIL (Data Pair)
    Environmental
  • Protection Class: IEC IP68, NEMA 1,3,4,6P
  • Temperature Rating: -40 deg C to 80 deg C to (-40 deg F to 176 deg F)
    Approvals
  • (Cable) UL: PLTC 75 deg C Sunlight Resistant E90625,
    AWM 80 deg C 300V
  • (Cable) CSA: CMX-OUTDOOR-CMG LL54185 75 deg C,
    AWM I/II A/B 80C 300V FT4
  • NMEA: NMEA 2000 Approved

    Specifications:

    • Cable Length (Feet): 20'
    • Data Interface: NMEA 2000
    • Box Dimensions: 2"H x 7"W x 7"L WT: 1.05 lbs
    • UPC: 873804001562
