By Wichard Marine
Wichard Captive Pin Bow Shackle - Diameter 5mm - 3/16" [01442]
Regular price
$25.12 USD
Regular price
$33.98 USD
Sale price
$25.12 USD
Unit price
per
Shipping calculated at checkout.
Availability:
Low stock: 5 left
SKU:
93127
Couldn't load pickup availability
![Wichard Thimble Shackle - Captive Pin - Diameter 8mm - 5/16" [01494] - BuoyMart.com Shackles/Rings/Pins Wichard Marine](http://buoymart.com/cdn/shop/files/93131XL.jpg?v=1741423158&width=1420)
![Wichard Thimble Shackle - Captive Pin - Diameter 10mm - 13/32" [01495] - BuoyMart.com Shackles/Rings/Pins Wichard Marine](http://buoymart.com/cdn/shop/files/93132XL.jpg?v=1741423159&width=1420)
![Wichard Captive Pin Bow Shackle - Diameter 5mm - 3/16" [01442] - BuoyMart.com Shackles/Rings/Pins Wichard Marine](http://buoymart.com/cdn/shop/files/93127XL.jpg?v=1741423157&width=150)
Regular price
$25.12 USD
Regular price
$33.98 USD
Sale price
$25.12 USD

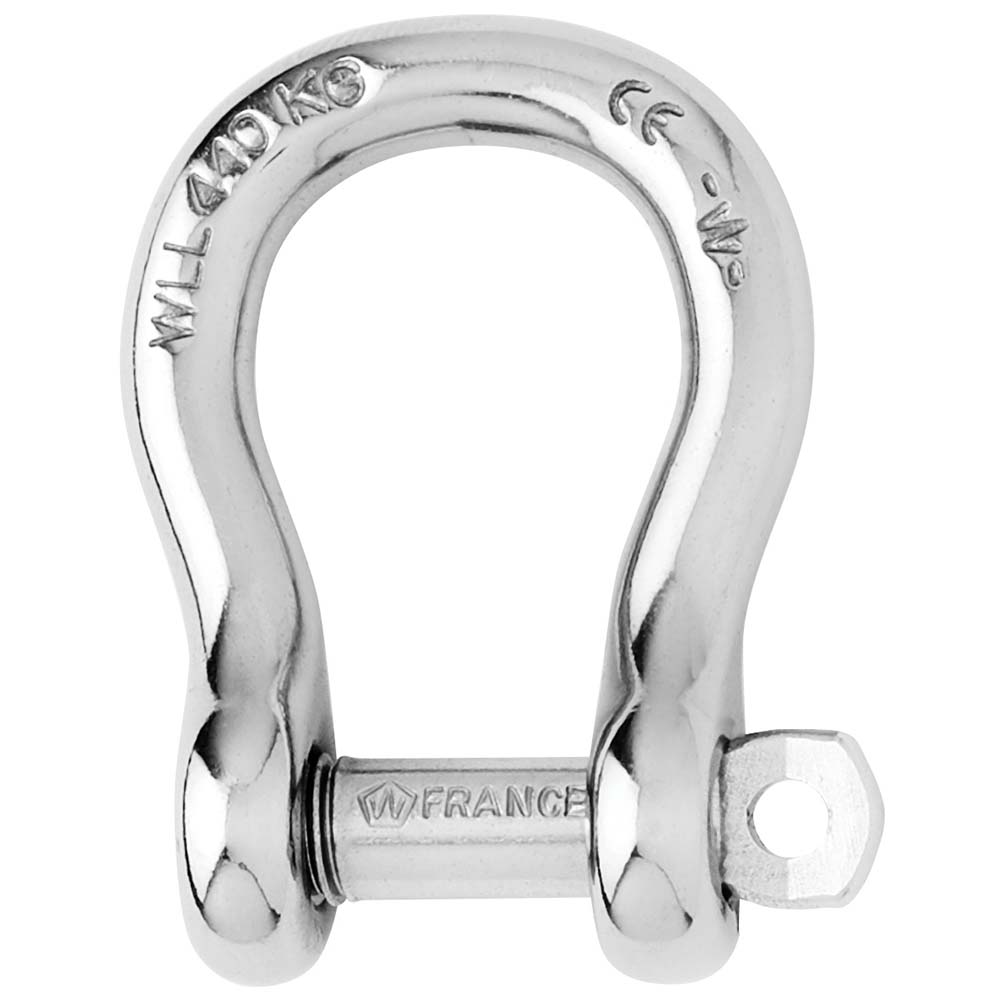

Captive Pin Bow Shackle - Diameter 5mm - 3/16"
Features:
- Captive pin bow shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Single handed operation for more safety
- WLL: only for industrial applications (lifting i.e…)
- CE marking and batch number
Applications:
- To be used when ample room is required
- Possibility to attach several lines or cables
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1050
- WLL (lb) 660
- Breaking load (lb) 3300
- Weight (lb) 0.042

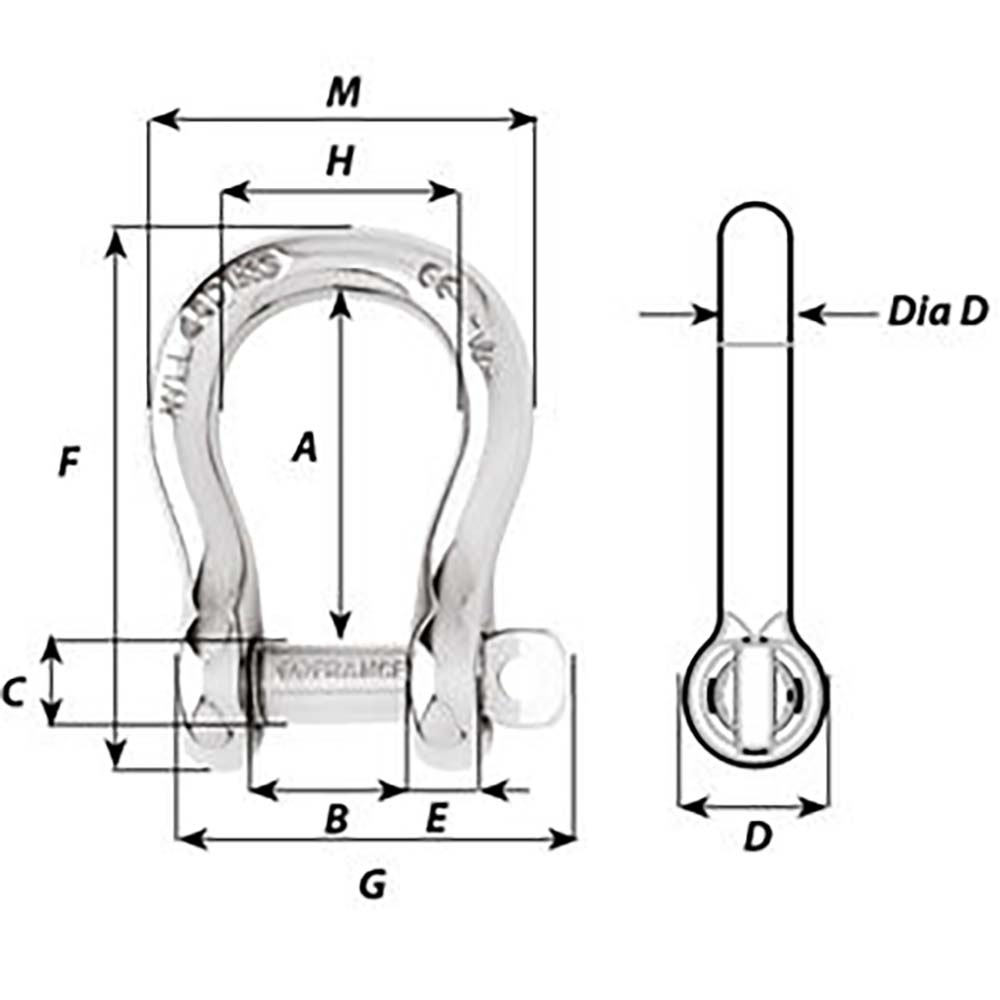

Dimensions (see 2nd image):
- A (inch) 29/32"
- B (inch) 25/64"
- C (inch) 15/64"
- D (inch) 7/16"
- D diameter (inch) 13/64"
- E (inch) 13/64"
- M (inch) 1-1/32"
