By Wichard Marine
Wichard Captive Pin D Shackle - Diameter 5mm - 3/16" [01402]
Regular price
$23.04 USD
Regular price
$31.17 USD
Sale price
$23.04 USD
Unit price
per
Shipping calculated at checkout.
Availability:
Low stock: 4 left
SKU:
93110
Couldn't load pickup availability
![Wichard Symmetric Carbin Hook - 120mm Length - 15/32" [02317] - BuoyMart.com Shackles/Rings/Pins Wichard Marine](http://buoymart.com/cdn/shop/files/97651XL.jpg?v=1741427266&width=1420)
![Wichard Captive Pin Twisted Shackle - Diameter 6mm - 1/4" [01423] - BuoyMart.com Shackles/Rings/Pins Wichard Marine](http://buoymart.com/cdn/shop/files/93121XL.jpg?v=1741423156&width=1420)
![Wichard Captive Pin D Shackle - Diameter 5mm - 3/16" [01402] - BuoyMart.com Shackles/Rings/Pins Wichard Marine](http://buoymart.com/cdn/shop/files/93110XL.jpg?v=1741423152&width=150)
Regular price
$23.04 USD
Regular price
$31.17 USD
Sale price
$23.04 USD

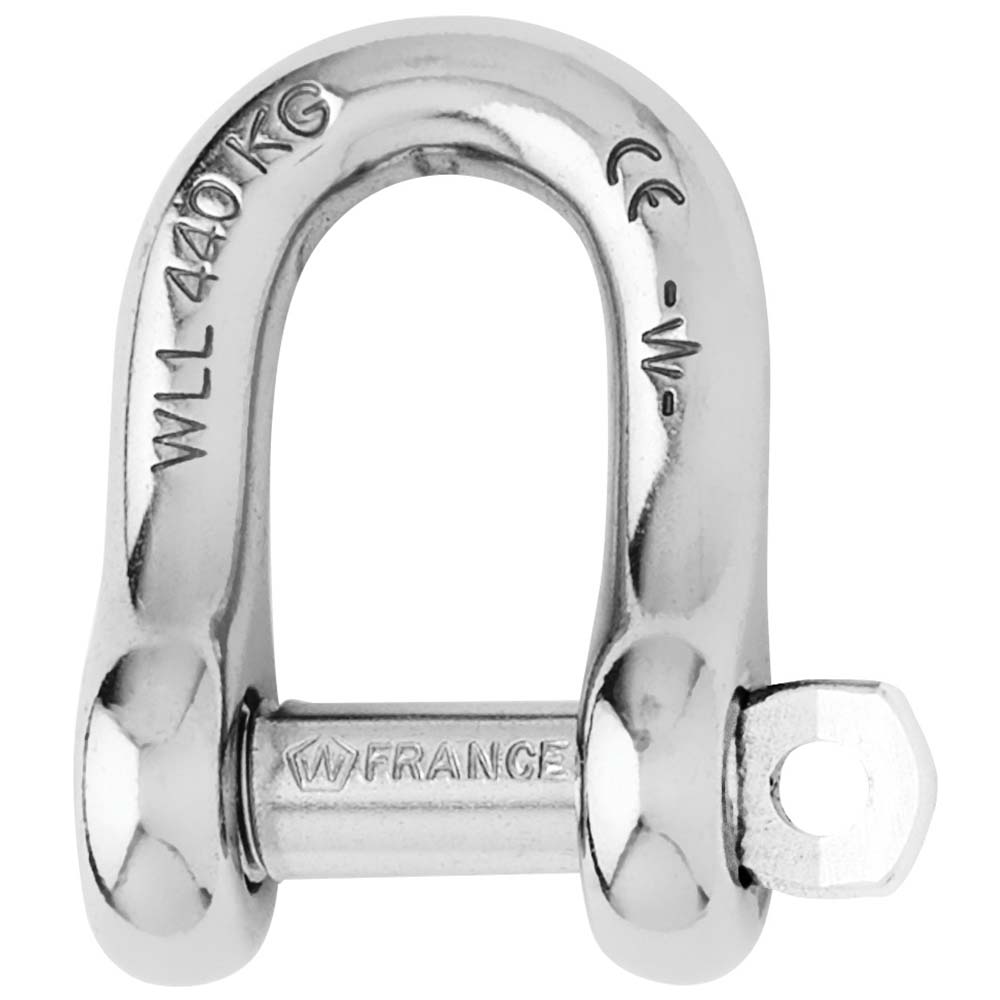

Captive Pin D Shackle - Diameter 5mm - 3/16"
Features:
- Captive pin "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1050
- WLL (lb) 660
- Breaking load (lb) 3300
- Weight (lb) 0.035

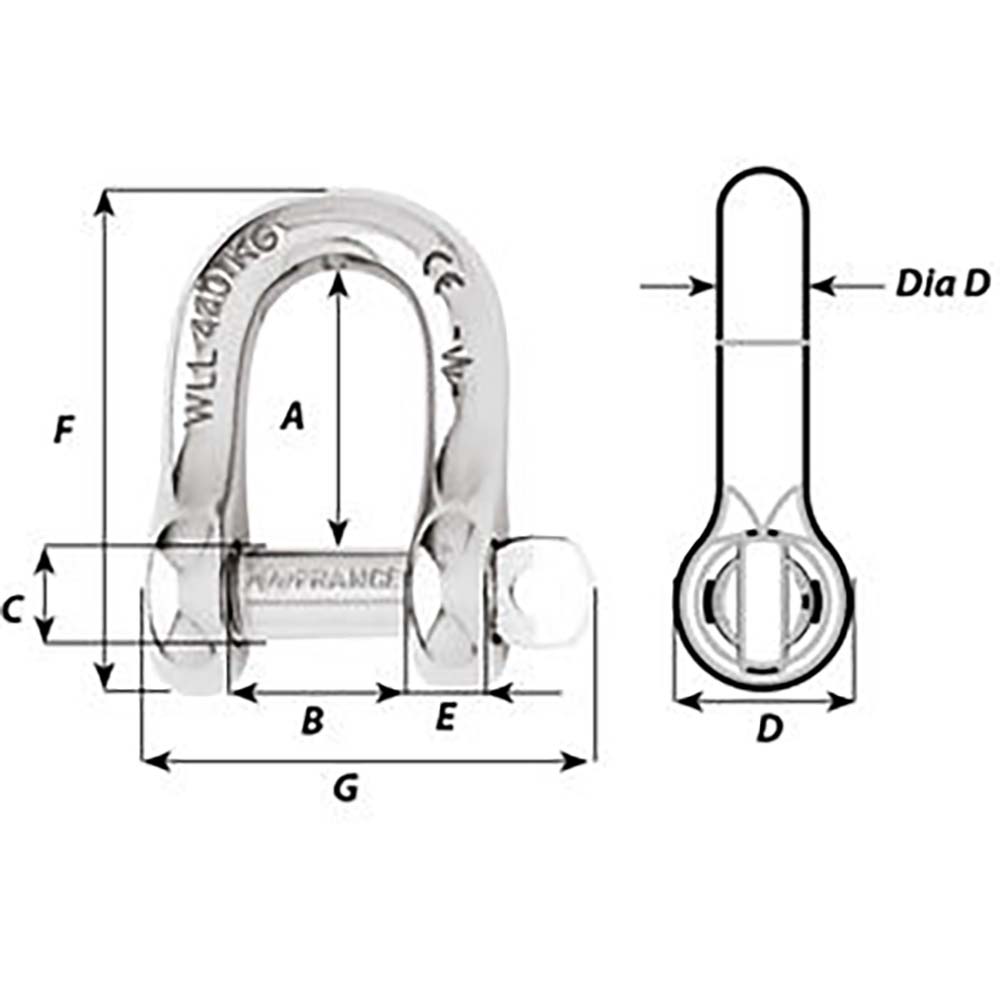

Dimensions (see 2nd image):
- A (inch) 5/8"
- B (inch) 25/64"
- C (inch) 15/64"
- D (inch) 7/16"
- D diameter (inch) 13/64"
- E (inch) 13/64"
- F (inch) 7/16"
- G (inch) 1-3/16"
- H (inch) 1-1/16"
