By Wichard Marine
Wichard Captive Pin D Shackle - Diameter 6mm - 1/4" [01403]
Regular price
$29.28 USD
Regular price
$39.62 USD
Sale price
$29.28 USD
Unit price
per
Shipping calculated at checkout.
Availability:
Low stock: 3 left
SKU:
93111
Couldn't load pickup availability
![Wichard Captive Pin Long D Shackle - Diameter 10mm - 13/32" [01415] - BuoyMart.com Shackles/Rings/Pins Wichard Marine](http://buoymart.com/cdn/shop/files/93119XL.jpg?v=1741423155&width=1420)
![Wichard Captive Pin Bow Shackle - Diameter 4mm - 5/32" [01441] - BuoyMart.com Shackles/Rings/Pins Wichard Marine](http://buoymart.com/cdn/shop/files/93126XL.jpg?v=1741423157&width=1420)
![Wichard Captive Pin D Shackle - Diameter 6mm - 1/4" [01403] - BuoyMart.com Shackles/Rings/Pins Wichard Marine](http://buoymart.com/cdn/shop/files/93111XL.jpg?v=1741423153&width=150)
Regular price
$29.28 USD
Regular price
$39.62 USD
Sale price
$29.28 USD

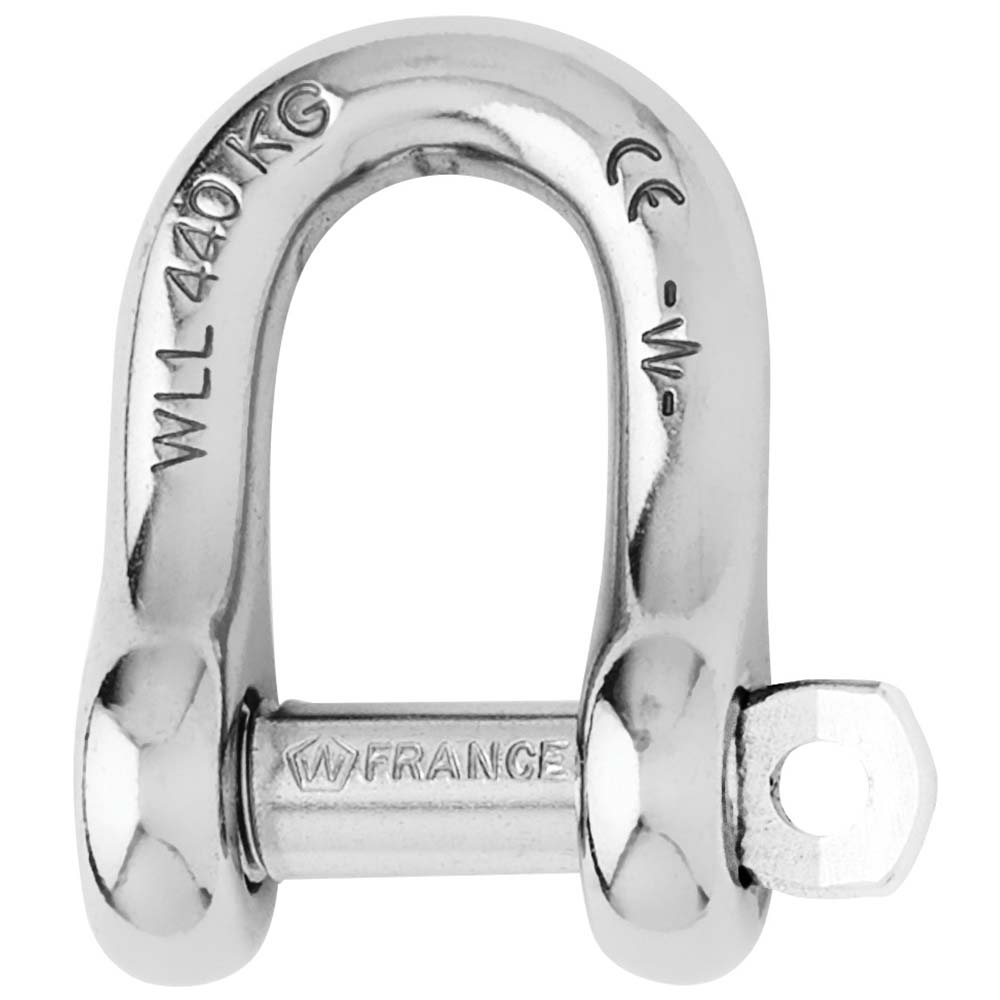

Captive Pin D Shackle - Diameter 6mm - 1/4"
Features:
- Captive pin "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 1490
- WLL (lb) 970
- Breaking load (lb) 4850
- Weight (lb) 0.062

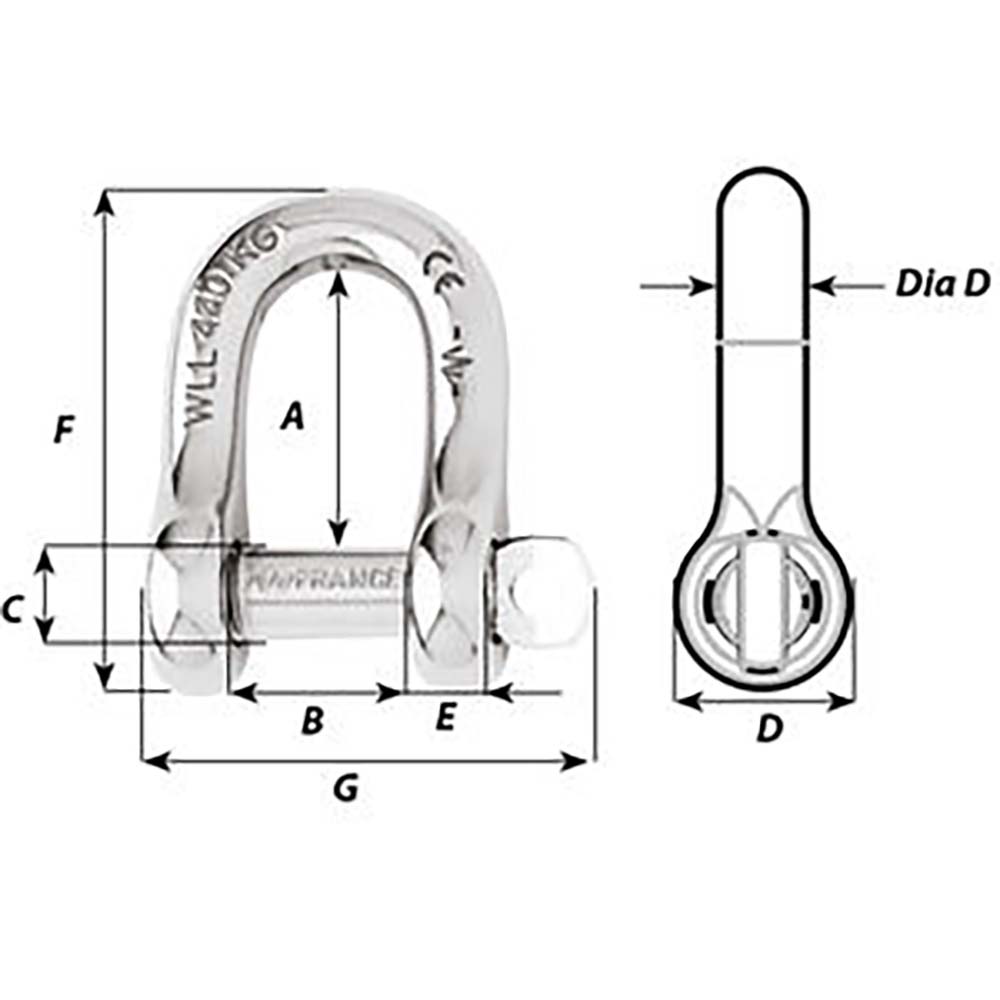

Dimensions (see 2nd image):
- A (inch) 25/32"
- B (inch) 15/32"
- C (inch) 9/32"
- D (inch) 35/64"
- D diameter (inch) 15/64"
- E (inch) 15/64"
- F (inch) 1-27/64"
- G (inch) 1-17/64"
