By Wichard Marine
Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16" [01414]
Regular price
$56.99 USD
Regular price
$77.11 USD
Sale price
$56.99 USD
Unit price
per
Shipping calculated at checkout.
Availability:
Low stock: 4 left
SKU:
93118
Couldn't load pickup availability
![Wichard HR Bow Shackle - 10mm Pin Diameter [11245] - BuoyMart.com Shackles/Rings/Pins Wichard Marine](http://buoymart.com/cdn/shop/files/97712XL.jpg?v=1741427499&width=1420)
![SeaSure Drop Nose Pin 5mm x 25mm [36.05.25CRD] - BuoyMart.com Shackles/Rings/Pins SeaSure](http://buoymart.com/cdn/shop/files/100463XL.jpg?v=1741430264&width=1420)
![Wichard Captive Pin Long D Shackle - Diameter 8mm - 5/16" [01414] - BuoyMart.com Shackles/Rings/Pins Wichard Marine](http://buoymart.com/cdn/shop/files/93118XL.jpg?v=1741423155&width=150)
Regular price
$56.99 USD
Regular price
$77.11 USD
Sale price
$56.99 USD

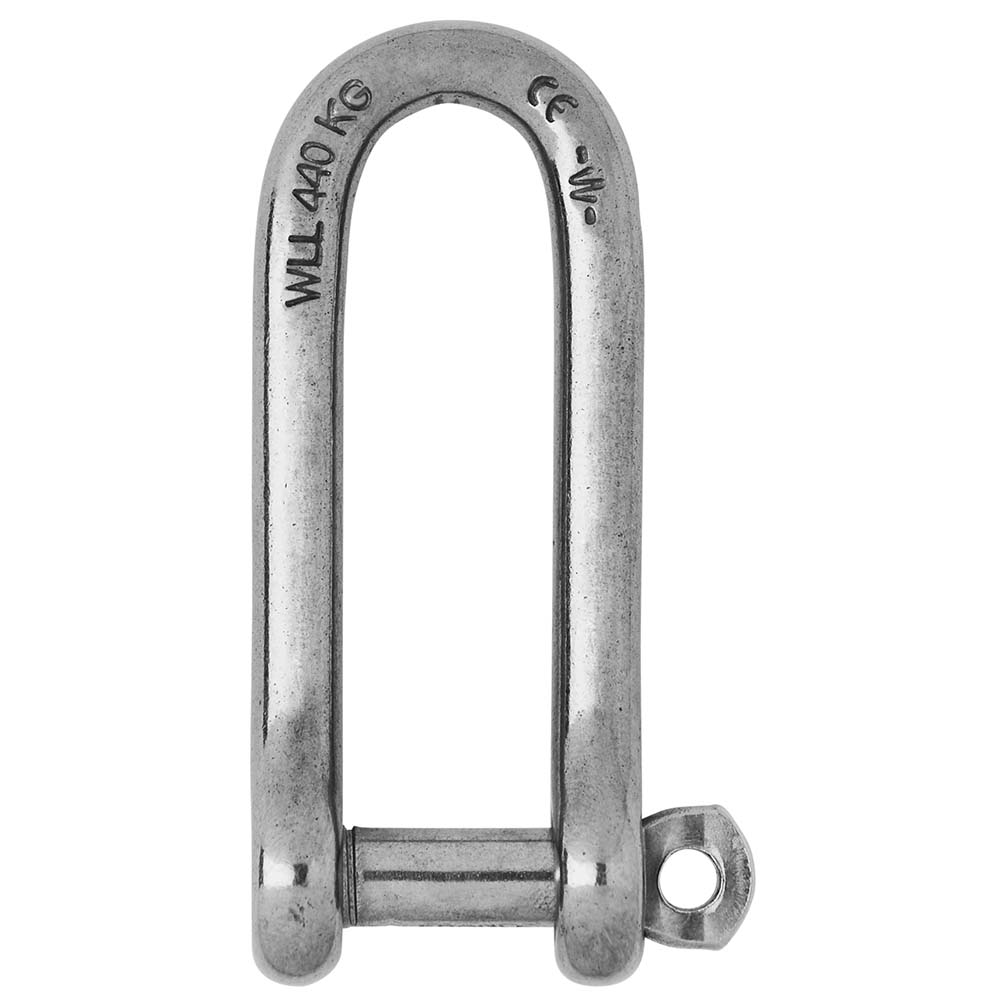

Captive Pin Long D Shackle - Diameter 8mm - 5/16"
Features:
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
Applications:
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
Specifications:
- Materials 316 stainless steel grade
- Working load (lb) 2200
- WLL (lb) 1580
- Breaking load (lb) 7930
- Weight (lb) 0.203

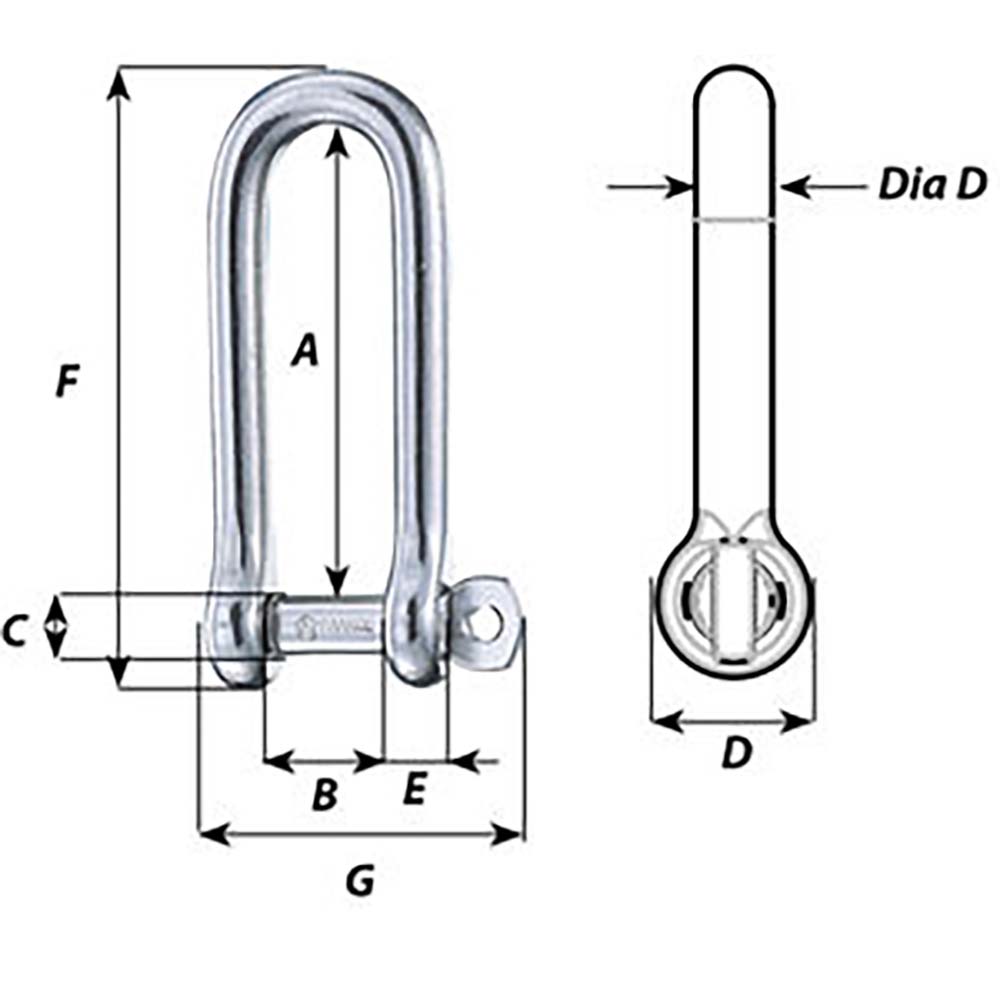

Dimensions (see 2nd image):
- A (inch) 2-7/16"
- B (inch) 5/8"
- C (inch) 23/64"
- D (inch) 43/64"
- D diameter (inch) 5/16"
- E (inch) 5/16"
- F (inch) 3-15/64"
- G (inch) 1-11/16"
